Real-time monitoring of sewage discharge

Our company adopts automatic, unmanned operation mode to achieve real-time discharge of condensate water in autoclave. Ensure that no condensate is generated during the steaming process.

First, the working principle

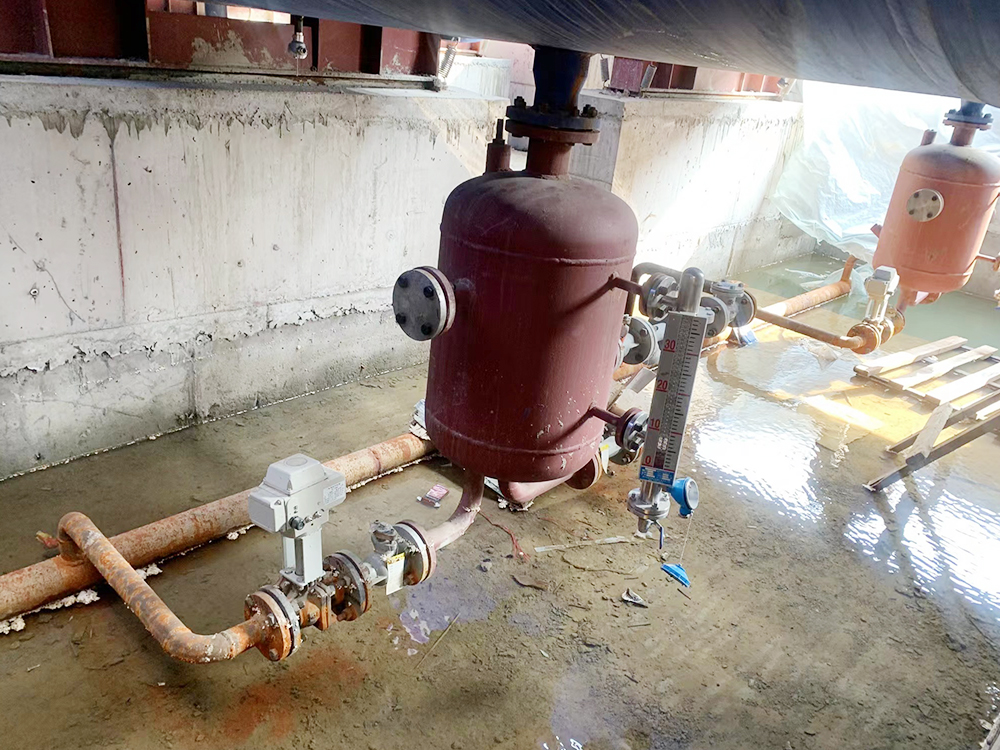

1 Discharge the autoclave condensate through the float trap;

2. If the float trap fails or there is too much condensed water in the kettle, it is too late to discharge, and the automatic valve is opened through the liquid level sensor signal for discharge;

3, at the end of the exhaust steam (pressure can be set), automatically open the tail steam discharge valve, the use of residual steam pressure in the size of the tank water and slag together to exhaust, play an automatic cleaning function. At the same time to accelerate the purpose of exhaust steam.

Second, automatic drainage features

1, fully automatic unmanned operation, automatic detection, automatic alarm failure;

2, automatic drainage using double protection and fault alarm. Ensure real-time discharge of condensate water in the kettle and facilitate troubleshooting.

3, automatic drainage system with cleaning function, effectively prevent valve failure and pipeline obstruction.

Third, the use of automatic drainage system is superior

1. It can ensure that there is no condensate in the process of steaming in the autoclave, reduce the temperature difference between the upper and lower parts of the autoclave, avoid the product from forming, and prevent the autoclave from deformation;

2, avoid in the process of steaming condensation water to absorb fresh steam, extend the steaming time, waste steam;

3. Avoid the residue of the product falling in the condensate water causing corrosion at the bottom of the kettle, and extend the service life of the autoclave.

4, can achieve hierarchical discharge according to temperature difference, to achieve further heat energy recovery of high-temperature condensate, energy saving and cost reduction effect is obvious.
